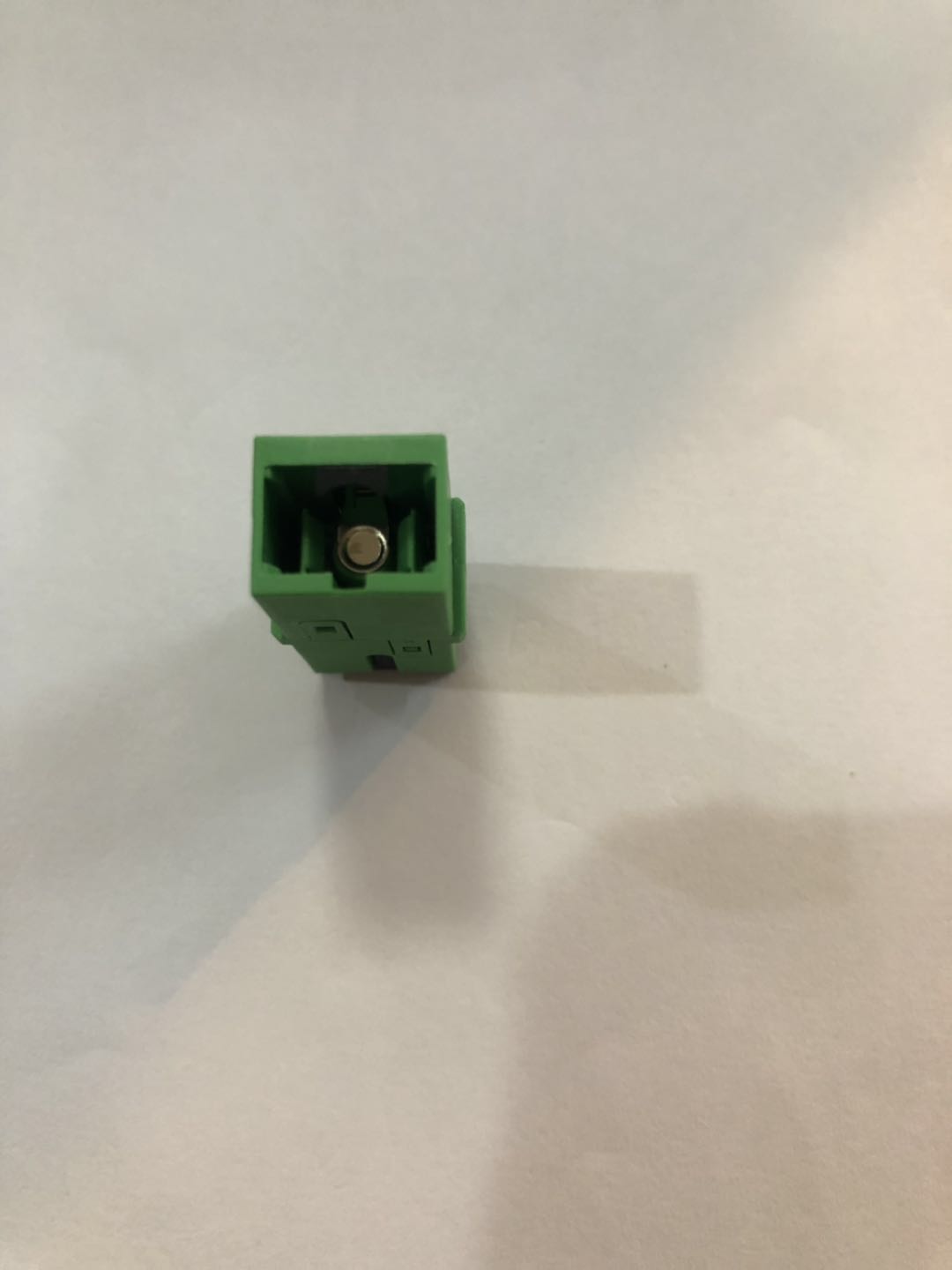

Fiber optic cable assembly,SCAPC UPC inner internal shutter adapter laser and ust free low loss 0.1dB

Product Categories
ZGT Optical Comm Limited
Contact Now

Fiber optic cable assembly,SCAPC UPC inner internal shutter adapter laser and ust free low loss 0.1dB

Brand Name : ZGT

Model Number : ZGT-AD-001

Certification : ISO9001,RoHS,CE

Place of Origin : CHINA

MOQ : N/A

Price : NEGOTIAABLE

Payment Terms : L/C, Western Union, T/T

Supply Ability : 1000000

Delivery Time : 3-5DAYS

Packaging Details : PLASTIC BOX

Product name : fiber optic adapter

Color : Green

Type : Singlemode

Insertion loss : ≤0.2dB

Application : FTTH FTTB FTTX Network,indoor/outdoor,Telecommunication/Fiber Optic CATV/Multimedia

Connector type : SC

Return loss : >55dB

Operating temperature : -40 to +85 degree

Durability : < 0.2db typical change

Storage temperature : Storage Temperature

Warranty : 3 years

Contact Now

Fiber optic cable assembly,SCAPC UPC inner internal shutter adapter laser and ust free low loss 0.1dBCompetitive Advantage:

Telcordia GR-326, IEC, TIA/EIA Standard compliant.

100% Optical performance inspection.

Low Insertion Loss.

RoHS Compliance.

LASER and Dust free

Customized design and production.

Parts &Material
Parts Material Remarks
Sleeve Zirconia, PB
Housing PEI Flammability UL94 V-0
Dust cap PVC Flammability UL94 V-0
Shutter PEI Flammability UL94 V-0
Metal Clip Stainless Steel

Optical Performance
Premium Grade Standard Grade
Insertion Loss ≤0.1dB ≤0.2dB
Durability 1000 times 1000 times

Enviroment and Mechanical
Properties Test condition Conformance Test result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 1000 Mating, clean every 25 mating. IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-6 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-12 ≤0.2dB
Temperature Cycling 40ºC to +75ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidty cycling 40ºC, 95%, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC ≤0.2dB
Storage Temperature -40ºC to +85ºC ≤0.2dB

Fiber optic cable assembly,SCAPC UPC inner internal shutter adapter laser and ust free low loss 0.1dB
